Takeuchi - Takeuchi TB210R Compact Excavator

excavators

Operating Weight: 1,150 kg

Rated Power: 12 Hp

Maximum Dig Depth: 1,755 mm

Call Us on 1800 425 438

Enquire Online

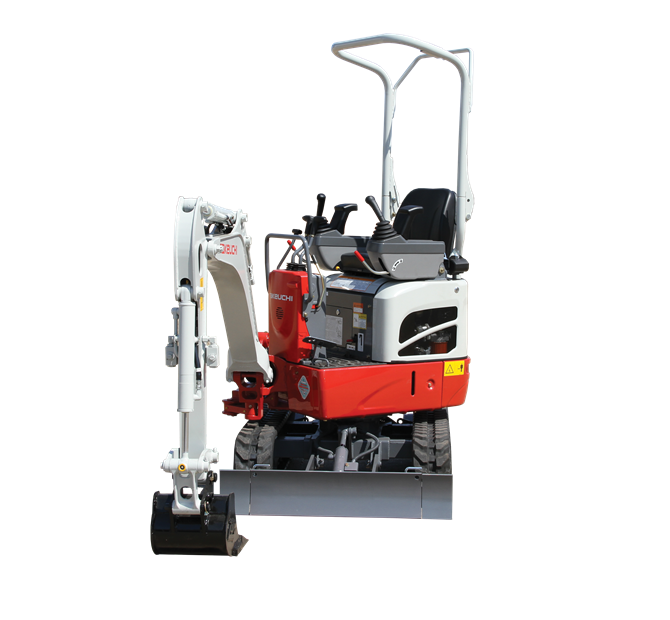

Takeuchi TB210R Compact Excavator

The TB210R delivers excellent performance and provides an impressive feature set in a very compact design. It features a retractable undercarriage, foldable ROPS, and short tail swing enabling the TB210R to work in the most confined applications.
(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

Operating weight

1,150kg

Engine

Kubota/D722-E4B

Emmissions

EU Stage V/EPA Tier 4 Emission Compliant

Engine Power

12Hp/8.86kW

Bucket Capacity

0.022m³

Arm Breakout Force

6.4kN

Bucket Breakout Force

11.2kN

Maximum Dig Depth

1,755mm

Machine Width

1,020/750

Download Product Sheet

The Four Takeuchi Pillars

Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
Powerful Traction Force – for excellent turning and travel performance in varying conditions.

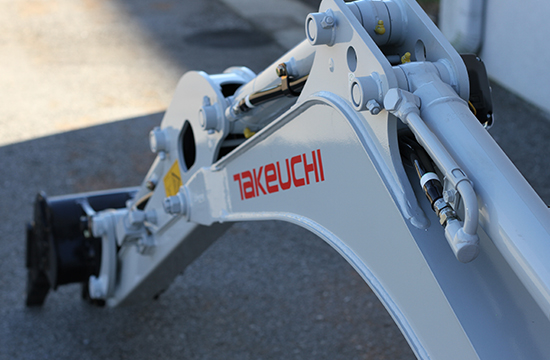

Boom Arm – provides greater working range and features two-way auxiliary hydraulics with shut-off valves.
Improved Two Speed - convenient push button on the right travel lever to shift from low to high speed.
Minimal tail swing allows the operator to work in confined applications without concern of rear swing impacts.

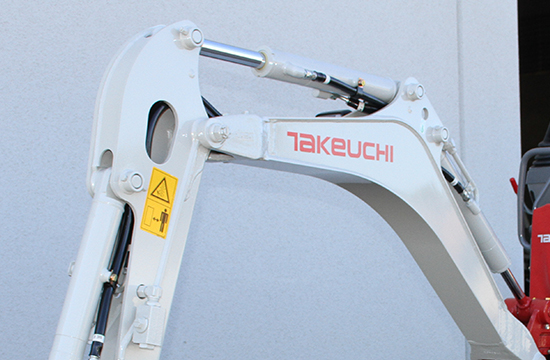

Top Mount Boom Cylinder – helps protect the boom cylinder from damage from the bucket and debris.
Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Double Flange Track Rollers – provide greater contact between the roller and rail for improved track retention.
Protected Hydraulic Plumbing – all hoses for working equipment are routed through the boom and arm for an extra level of protection, and greater visibility of the work equipment.

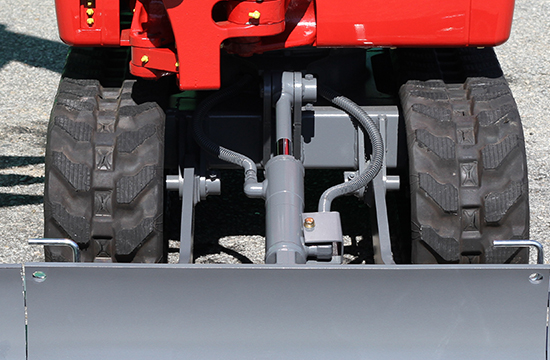

Spiral Wrapped Lines – protect the blade cylinder hydraulic lines from damage due to rocks and debris.
All Steel Construction – Protects components and ensures long term durability.

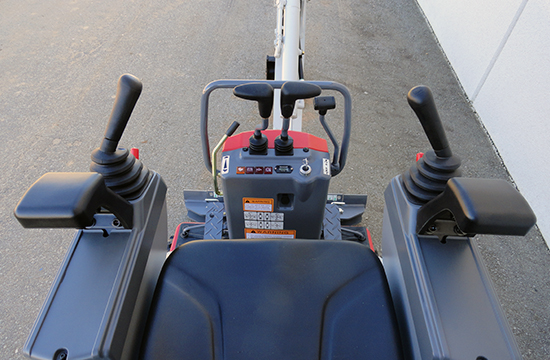

Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
Optional Pattern Change Valve – will allow the operator to choose their preferred operational pattern for greater efficiency and safety.
Arm Rests – fully support the operator’s arm for improved comfort.

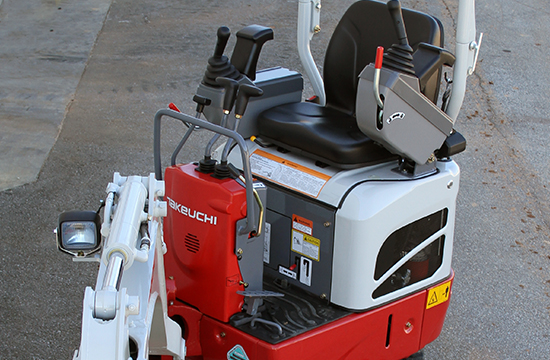

Dual Entry Points – make it easier for the operator to enter or exit the machine from either side.
Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
Convenient Handle – makes it easy to enter and exit the machine from both the right and left side.

Excellent Serviceability – allows all key service and maintenance points to be inspected quickly and easily.

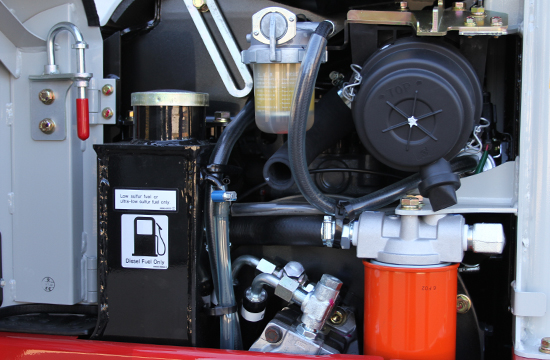

Side Access Panel – houses dual element air cleaner, fuel filter with shut-off, hydraulic filter, and fuel tank with sight gauge.

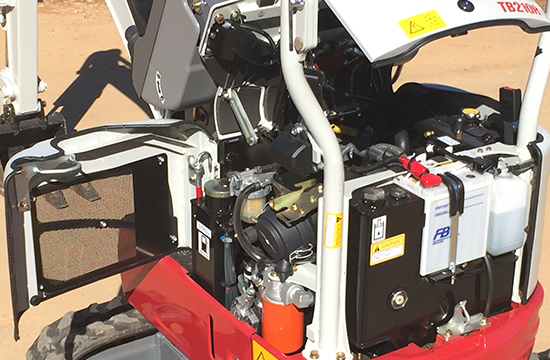

Rear Engine Access – Provides convenient access to daily checks and routine maintenance points.
Front Compartment – provides outstanding access to the alternator, engine oil filter and engine oil dipstick.
Selector Valve – located under the operator’s seat allows operator to quickly choose one way or two auxiliary hydraulic flow.
Lockable Fuel Fill – is convenient and secure. A remote gauge is also provided for assistance when refuelling. The system also uses a self-bleeding system to provide easier restarts if the machine is run out of fuel.
