Takeuchi - Takeuchi TB215R Compact Excavator

excavators

Operating Weight: 1,610 kg

Rated Power: 15 Hp

Maximum Dig Depth: 2,190 mm

Call Us on 1800 425 438

Enquire Online

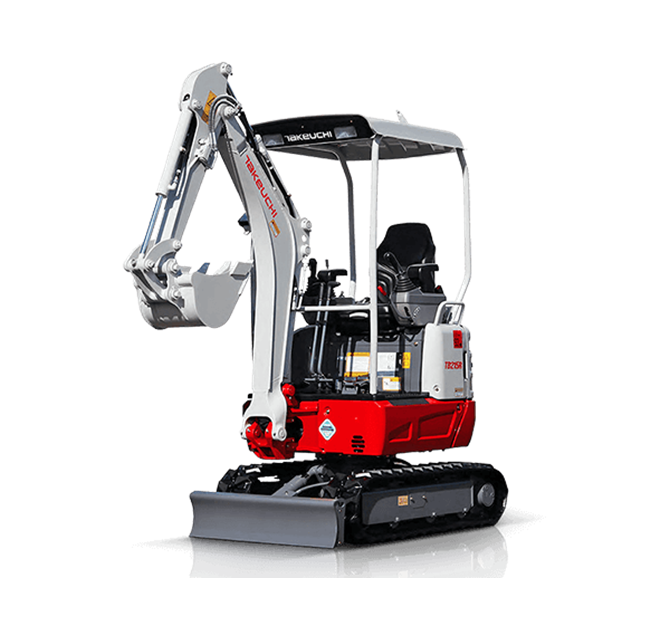

Takeuchi TB215R Compact Excavator

The TB215R is a short tail swing design allowing it to work in confined job sites with little concern for rear swing impacts. It features a retractable undercarriage enabling it to enter a job site with limited access, and once in position the track frame can be expanded for improved stability.
(Overseas model shown. For full Australian specifications please refer to product brochures supplied by TMHA or contact TMHA for more details).

Operating weight

1,610 kg

Engine

Yanmar/3TNV70

Emmissions

EU Stage V Emission Compliant

Engine Power

15Hp/11.5kW

Bucket Capacity

0.038m³

Arm Breakout Force

9.5kN

Bucket Breakout Force

14.0kN

Maximum Dig Depth

2,190mm

Machine Width

980/1,300

Download Product Sheet

The Four Takeuchi Pillars

Minimal Tail Swing – allows the TB215R to work in the most confined applications for even greater versatility.
The engine is efficient and powerful and meets the latest emission standards.
Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
Improved Two Speed – features a convenient push button on the right travel lever to shift from low to high speed.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Heavy duty dozer blade features integrated anchor points.
All Steel Construction – Protects components and ensures long term durability.
Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

Multi-information display is easy to read and provides critical machine data to the operator.
Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
The operator’s station features ample leg room with easy access to the boom swing and auxiliary hydraulic control pedals.

The Four Takeuchi Pillars

Minimal Tail Swing – allows the TB215R to work in the most confined applications for even greater versatility.
The engine is efficient and powerful and meets the latest emission standards.
Retractable Undercarriage – allows this machine to travel through standard doorways and areas with limited access with ease.
Improved Two Speed – features a convenient push button on the right travel lever to shift from low to high speed.

Wrap Around Counterweight – Protects key engine and hydraulic components from damage while delivering excellent stability.
Heavy duty dozer blade features integrated anchor points.
All Steel Construction – Protects components and ensures long term durability.
Triple Flange Track Rollers – provide increased roller to rail contact improving track retention.

Multi-information display is easy to read and provides critical machine data to the operator.
Pilot Operated Joystick Controls – deliver precise responsive controls and are low effort reducing fatigue.
Operator’s Station – Delivers excellent visibility and operator comfort while providing easy entry and exit.
The operator’s station features ample leg room with easy access to the boom swing and auxiliary hydraulic control pedals.
